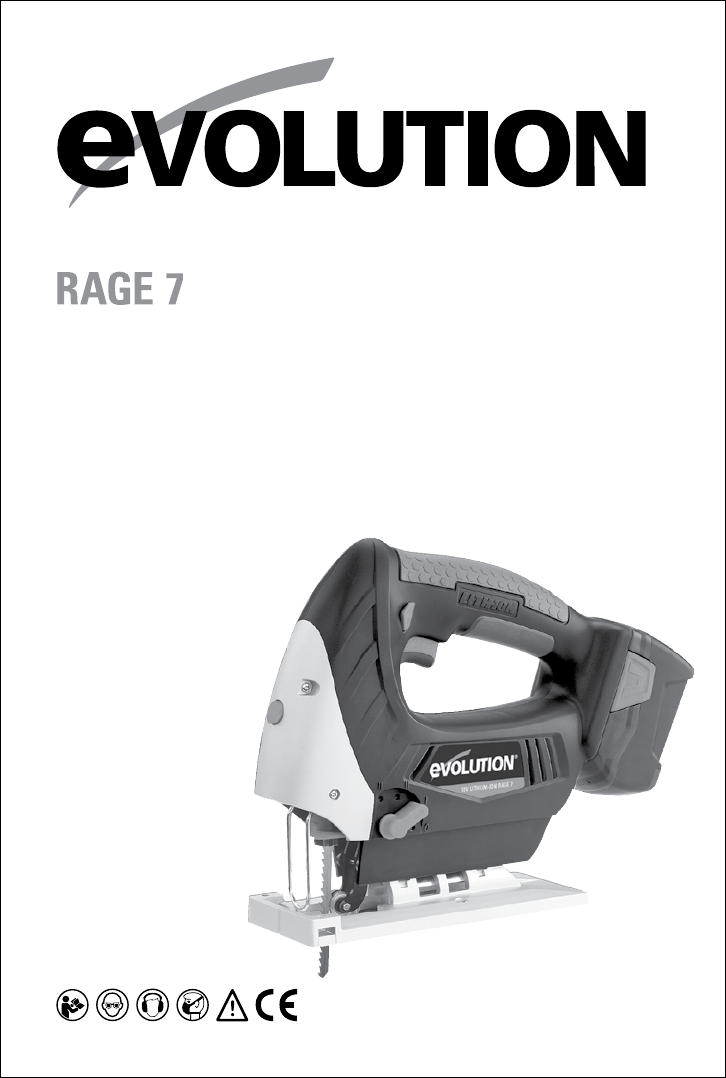

Evolution BATTERY JIGSAW Specifications

Multipurpose 18V Lithium-Ion Jigsaw Supplied With Battery & ChargerOriginal InstructionsRead instructions before operating this tool.www.evolutio

10www.evolutionbuild.com®SPECIFICATIONEVOLUTION BATTERY JIGSAW & CHARGERJIGSAWVoltage: 18.0V-DCNo Load Speed: 0-2400 strokes per minuteStroke Len

11www.evolutionbuild.comCHARGING INDICATORThis charger is designed to detect problems that can sometimes arise with rechargeable battery packs. The st

12www.evolutionbuild.com®3. ON/OFF TRIGGER SWITCH - See Fig 4This tool is fitted with a variable speed trigger switch that delivers higher speed as the

13www.evolutionbuild.comOPERATIONGENERAL CUTTINGNote: Always ensure that the footplate of the jigsaw is in close contact with the workpiece throughout

14www.evolutionbuild.com®Note: Angled cutting, whatever the material, is always more difficult than general straight cutting. With angled cutting it is

15www.evolutionbuild.comPARTS LISTS

®

2www.evolutionbuild.comTABLE OF CONTENTSEC - Declaration of Conformity 2Figures 3Important Information 412 Month Limited Warranty 4General Safety

3www.evolutionbuild.comFIGURESFIGURE 1 FIGURE 2FIGURE 3 FIGURE 4 FIGURE 5FIGURE 6 FIGURE 7 FIGURE 8

4www.evolutionbuild.com®IMPORTANTPlease read these operating and safety instructions carefully and completely. For your own safety, before using this

5www.evolutionbuild.comGENERAL SAFETY RULES WARNING When using electric tools, basic safety precautions should always be followed to reduce the risk o

6www.evolutionbuild.com®22. Have your tool repaired at an authorised service centre. This electric tool complies with current safety rules. Repairs sh

7www.evolutionbuild.comSAFETY RULES FOR YOU EVOLUTION BATTERY CHARGERWARNING! READ AND UNDERSTAND ALL OF THESE INSTRUCTIONS. SAVE THESE INSTRUCTIONS

8www.evolutionbuild.com®CARE OF YOUR PURE BATTERY PACK1. Do not charge the battery pack when the temperature is below 0°C (32°F) or above 40°C (104°F)

1. KEYLESS COLLET CHUCK2. BLADE GUARD3. SWITCH SAFETY LOCK SLIDE BUTTON
